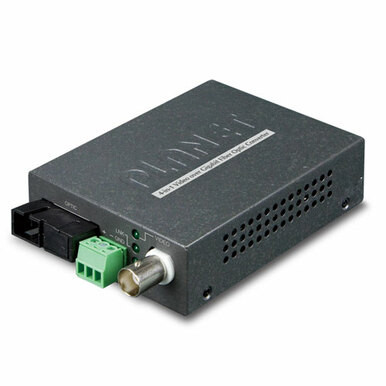

PLANET has developed the video over Gigabit fiber media converter kit, VF-101G-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-101G-KIT video over fiber media converter enables videos to be delivered in high quality at a distance of up to 20km long.
This video over gigabit fiber converter kit consists of a video transmitter and a video receiver:
Model Name | Video Type | Fiber Speed | Optical Distance | Optical Connector |
VF-101G | AHD/TVI/CVI/CVBS | 1.25G/84M | 20km in single mode | ST |
VF-102G | FC | |||
VF-106G | WDM-SC |
The VF-101G-KIT is a digital fiber-optic transmission system that brings users a cost-effective solution for transmission of 1 channel uncompressed digital video and one reverse RS485 async data over one single fiber cable. The VF-101G-KIT is an adjustable free device providing high-quality and real-time video transmission. It can be widely used in intelligent transportation systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts, and more.
Installation of the VF-101G-KIT media conversion is quite easy with it™ simply ‘plug and play’ feature. They can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700, MC-1500 and MC-1500R). When working with the media converter chassis it provides DC power to VF-101G-T or VF-101G-R to maintain the video over fiber-optic transmission system at the central location.
